Installation and Configuration of mod_pagespeed Module with Apache | Ubuntu 18.4

Mod_pagespeed is an Apache module that can be used to improve the speed of the Apache web server on Linux. Mod_pagespeed has several filters that automatically optimize Web Pages to improve better performance. It supports several operating systems such as Fedora, RHEL, Debian, Ubuntu, and CentOS. Mod_pagespeed module does not require modifications to existing content that means all internal optimizations and changes to files are made on the server-side.

Requirements

  • A server running Ubuntu 18.04.
  • A static IP address 192.168.0.104 is set up to your server
  • A root password is setup to your server.

Getting Started

Before starting, you will need to update your system with the latest version. You can do this by running the following command:

apt-get update -y
 apt-get upgrade -y

Once your server is updated, restart your server to apply the changes.

Install Apache Web Server

First, you will need to install Apache web server to your system. You can install it by just running the following command:

apt-get install apache2 -y

Once the installation has been completed, start Apache service and enable it to start on boot with the following command:

systemctl start apache2
 systemctl enable apache2

Once you have finished, you can proceed to the next step.

Install Mod_pagespeed Module

First, you will need to download the latest version of Mod_pagespeed from their official website. You can do it with the following command:

wget https://dl-ssl.google.com/dl/linux/direct/mod-pagespeed-stable_current_amd64.deb

Once the download is completed, install it by running the following command:

dpkg -i mod-pagespeed-stable_current_amd64.deb

Once the installation has been completed successfully, restart Apache service to apply all the changes:

systemctl restart apache2

You can now verify the Mod_pagespeed module with the following command:

curl -D- localhost | head

You should see the following output:

  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
  0     0    0     0    0     0      0      0 --:--:-- --:--:-- --:--:--     0HTTP/1.1 200 OK
Date: Sat, 11 May 2019 04:58:26 GMT
Server: Apache/2.4.29 (Ubuntu)
Accept-Ranges: bytes
X-Mod-Pagespeed: 1.13.35.2-0
Vary: Accept-Encoding
Cache-Control: max-age=0, no-cache, s-maxage=10
Content-Length: 10089
Content-Type: text/html; charset=UTF-8

100 10089  100 10089    0     0   182k      0 --:--:-- --:--:-- --:--:--  185k

Configure Mod_pagespeed Web Interface

Mod_pagespeed module provides a simple and user-friendly web interface to view server state. You can enable Mod_pagespeed web interface by creating /pagespeed.conf file:

nano /etc/apache2/mods-available/pagespeed.conf

Add the following lines:

<Location /pagespeed_admin>
    Order allow,deny
    Allow from localhost
    Allow from 127.0.0.1
    Allow from all
    SetHandler pagespeed_admin
</Location>

<Location /pagespeed_global_admin>
    Order allow,deny
    Allow from localhost
    Allow from 127.0.0.1
    Allow from all
    SetHandler pagespeed_global_admin
</Location>

Save and close the file, when you are finished. Then, restart Apache service to apply all the changes:

systemctl restart apache2

Once you have done, you can proceed to access Mod_pagespeed web interface.

Access Mod_pagespeed Web Interface

Now, open your web browser and type the URL http://192.168.0.104/pagespeed_admin. You will be redirected to the following page:

mod_pagespeed web interface

Statistics

Pagespeed statistics

Configuration

Pagespeed configuration

Histograms

Pagespeed Histograms

Console

Pagespeed Console

Message History

Message History

Graphs

Pagespeed Graphs

Congratulations! you have successfully installed Mod_pagespeed with Apache on Ubuntu 18.04 server.

How to install Jenkins in Ubuntu..!!

Jenkins Installation on Ubuntu 18.4

Jenkins is an open-source automation server that offers an easy way to set up a continuous integration and continuous delivery (CI/CD) pipeline.

Continuous integration (CI) is a DevOps practice in which team members regularly commit their code changes to the version control repository, after which automated builds and tests are run. Continuous delivery (CD) is a series of practices where code changes are automatically built, tested and deployed to production.

In this tutorial, we will show you how to install Jenkins on an Ubuntu 18.04 machine using the Jenkins Debian package repository.

Installing Jenkins

To install Jenkins on your Ubuntu system, follow these steps:

  1. Install Java.Since Jenkins is a Java application, the first step is to install Java. Update the package index and install the Java 8 OpenJDK package with the following commands:
    sudo apt updatesudo apt install openjdk-8-jdk

    The current version of Jenkins does not support Java 10 (and Java 11) yet. If you have multiple versions of Java installed on your machine make sure Java 8 is the default Java version.

  2. Add the Jenkins Debian repository.Import the GPG keys of the Jenkins repository using the following wget command:
    wget -q -O - https://pkg.jenkins.io/debian/jenkins.io.key | sudo apt-key add -

    The command above should output OK which means that the key has been successfully imported and packages from this repository will be considered trusted.

    Next, add the Jenkins repository to the system with:

    sudo sh -c 'echo deb http://pkg.jenkins.io/debian-stable binary/ > /etc/apt/sources.list.d/jenkins.list'
  3. Install Jenkins.Once the Jenkins repository is enabled, update the apt package list and install the latest version of Jenkins by typing:
    sudo apt updatesudo apt install jenkins

    Jenkins service will automatically start after the installation process is complete. You can verify it by printing the service status:

    systemctl status jenkins

    You should see something similar to this:

    ● jenkins.service - LSB: Start Jenkins at boot time
    Loaded: loaded (/etc/init.d/jenkins; generated)
    Active: active (exited) since Wed 2018-08-22 13:03:08 PDT; 2min 16s ago
        Docs: man:systemd-sysv-generator(8)
        Tasks: 0 (limit: 2319)
    CGroup: /system.slice/jenkins.service

Adjusting Firewall

If you are installing Jenkins on a remote Ubuntu server that is protected by a firewall you’ll need to open port 8080. Assuming you are using UFW to manage your firewall, you can open the port with the following command:

sudo ufw allow 8080

Verify the change with:

sudo ufw status
Status: active

To                         Action      From
--                         ------      ----
OpenSSH                    ALLOW       Anywhere
8080                       ALLOW       Anywhere
OpenSSH (v6)               ALLOW       Anywhere (v6)
8080 (v6)                  ALLOW       Anywhere (v6)

Setting Up Jenkins

To set up your new Jenkins installation, open your browser, type your domain or IP address followed by port 8080http://your_ip_or_domain:8080 and screen similar to the following will be displayed:

During the installation, the Jenkins installer creates an initial 32-character long alphanumeric password. Use the following command to print the password on your terminal:

sudo cat /var/lib/jenkins/secrets/initialAdminPassword
2115173b548f4e99a203ee99a8732a32

Copy the password from your terminal, paste it into the Administrator password field and click Continue.

On the next screen, the setup wizard will ask you whether you want to install suggested plugins or you want to select specific plugins. Click on the Install suggested plugins box, and the installation process will start immediately.

Once the plugins are installed, you will be prompted to set up the first admin user. Fill out all required information and click Save and Continue.

The next page will ask you to set the URL for your Jenkins instance. The field will be populated with an automatically generated URL.

Confirm the URL by clicking on the Save and Finish button and the setup process will be completed.

Click on the Start using Jenkins button and you will be redirected to the Jenkins dashboard logged in as the admin user you have created in one of the previous steps.

At this point, you’ve successfully installed Jenkins on your system.

Conclusion

In this tutorial, you have learned how to install and perform the initial configuration of Jenkins. You can now start exploring Jenkins features by visiting the official Jenkins documentation page.

Install LAMP Stack on Ubuntu 18.4 & 16.4

Installing Apache

Note: We will assume that a non-root user has been configured for the purposes of this guide. If it has not, you can run all commands without sudo privileges. However, we recommend only using the root user when there is no other option. To configure a new sudo user, please check out the Creating a New Sudo User section of our How to Secure Your SSH Connection in Ubuntu 18.04 article.

Before we install Apache, we first want to ensure that our operating system is fully up to date. We can do this with the following command:

$ sudo apt update

Now that the OS is up to date, we can proceed to install Apache. Do so by entering the following command:

$ sudo apt install apache2

Note: If you have a firewall enabled, you will need to ensure that ports 80 and 443 are listening.

Now type the IP address of your server into a browser to confirm that Apache has installed properly. If it has, you will see the following page:


Now that we have Apache installed and working, let’s get started installing MySQL.

Installing MySQL

The third portion of our LAMP stack is MySQL. To install MySQL, enter the following command:

$ sudo apt install mysql-server

Now enter the MySQL installation module using the following command:

$ sudo mysql_secure_installation

You will be met with the following prompt:

Securing the MySQL server deployment.

Connecting to MySQL using a blank password.

VALIDATE PASSWORD PLUGIN can be used to test passwords
and improve security. It checks the strength of password
and allows the users to set only those passwords which are
secure enough. Would you like to setup VALIDATE PASSWORD plugin?

Press y|Y for Yes, any other key for No:

It is entirely up to you whether you choose to install this plugin or not. It will check the strength of any passwords you set and make sure they are strong enough. We will proceed as if you did not install the plugin.

Next, you will be prompted to create a new password for your MySQL root user. Choose any password you wish and then confirm the password at the following prompt.

Press y and ENTER for each of the rest of the prompts. When you are finished you will get the following output:

All done!

Now that we have MySQL installed, let’s take a look at installing PHP.

Installing PHP

In this section, we will be installing and configuring PHP. First, we need to install PHP along with its packages for Apache and MySQL using the following command:

$ sudo apt install php php-mysql libapache2-mod-php

Note: If you wish to download other PHP packages, you can append them to the end of this command.

Next, we want to configure Apache to favor PHP files over HTML files (the default file type it chooses). To do so, open the dir.conf file in a text editor of your choice:

$ sudo vi /etc/apache2/mods-enabled/dir.conf

In this file, we want to move index.php to the beginning of the list of file types. The file should appear as follows.

<IfModule mod_dir.c>
        DirectoryIndex index.php index.html index.cgi index.pl index.xhtml index.htm
</IfModule>

Now we need to restart Apache so that it reads the configuration changes. Do so using the following command:

$ sudo systemctl restart apache2

Finally, we will create a test file to ensure that PHP has been installed and configured correctly. Create a new file called info.php by opening it in your preferred text editor using the following command:

$ sudo vi /var/www/html/info.php

Enter the following text into the file:

<?php
phpinfo();
?>

Now navigate to the following website, replacing the x’s with your server’s IP address or domain name: xxx.xxx.xxx.xxx/info.php

You should see the following page.


If you see the above page, you have correctly deployed PHP and you are done deploying your LAMP stack. Since this page gives information about your server that could be used to exploit your security, delete this file using the following command:

$ sudo rm /var/www/html/info.php

Conclusion

A properly deployed LAMP stack is the backbone of many websites. Having read this guide, you should now know how Apache, MySQL, and PHP are used as well as how to perform a basic installation of a LAMP stack.

Difference between Dockerfile and Docker Compose file..?

Why Docker Can't Solve All Your Problems in the Cloud | Threat Stack

So you need to deploy containers. Where do you begin? You could certainly do this from the command line, deploying each container via a long string of command options, every time. Or you could make use of a tool that allows you to carefully construct the deployment within a configuration file, and then deploy the container with a simple command.

But which configuration file do you use? Which method of deployment do you use? You can go with docker-compose or docker. Your choice could all hinge on the complexity of the application/service you plan on deploying. And that all boils down to using either a Dockerfile or a docker-compose.yml or both.

You see? It gets complicated because you can use docker-compose.yml in such a way that it will call upon a Dockerfile to allow you to create even more complex container rollouts.

Let’s see how these two are used in conjunction.

Dockerfile

So let’s say we want to create a Dockerfile that will use the latest NGINX image, but install php and php-fpm. The file is named Dockerfile and we’ll house it in a new directory called dockerbuild. Create that new directory with the command:

mkdir ~/dockerbuild

Within ~/dockerbuild, create the Dockerfile with the command:

nano Dockerfile

In that file, paste the following:

FROM nginx:latest
MAINTAINER NAME EMAIL

RUN apt-get -y update && apt-get -y upgrade && apt-get install -y php-fpm

Where NAME is the name to be used as the maintainer and EMAIL is the maintainer’s email address.

This Dockerfile will pull the latest version of the official NGINX image and then build a new image based on it, and also upgrade the platform and install the php-fpm package and its dependencies (which includes PHP). It’s an incredibly simple example, but one that’s easy to follow.

You could then run the docker build command with that Dockerfile, like so:

docker build -t "webdev:Dockerfile" .

But we want to integrate that file into docker-compose.yml.

The docker-compose.yml file

Now let’s craft a docker-compose.yml file which uses that Dockerfile, but also adds a database to the stack. This docker-compose.yml file might look like:

version: '3'
services:
  web:
    build: .
    ports:
     - "8080:80"
  db:
    image: mysql
    ports:
    - "3306:3306"
    environment:
    - MYSQL_ROOT_PASSWORD=password
    - MYSQL_USER=user
    - MYSQL_PASSWORD=password
    - MYSQL_DATABASE=demodb

The important section here is web:. It is in the web section that we instruct the docker-compose command to use the Dockerfile in the same directory (the . indicates to run the build command in the current working directory). If we wanted to house our Dockerfile in a completely separate directory, it would be declared here. Say, for example, the docker-compose.yml file is in ~/dockerbuild and the Dockercompose file is in ~/nginxbuild, you could declare that with the line:

build: ~/nginxbuild

Save and close the file. You could then deploy the new container with the command (run from within the directory housing the docker-compose.yml file):

docker-compose up

The command would first build the NGINX container from the Dockerfile and then deploy the db container as defined in the db: section.

Of course, you could also define everything within the docker-compose.yml file, but making use of both Dockerfile and docker-compose.yml makes for a much more flexible and efficient system. Why? Say you’ve defined a very complex Dockerfile for an NGINX container and you want to reuse that in a container deployment within a complete stack. Why go through all the trouble of re-defining the NGINX container within docker-compose.yml when you can simply repurpose the Dockerfile.

Write once, use often

With this system, you can write once and use often. So craft a Dockerfile for a part of the stack and re-use it for multiple stacks, by way of docker-compose.yml. Remember, docker-compose.yml files are used for defining and running multi-container Docker applications, whereas Dockerfiles are simple text files that contain the commands to assemble an image that will be used to deploy containers.

So the workflow looks like this:

  1. Create Dockerfiles to build images.
  2. Define complex stacks (comprising of individual containers) based on those Dockerfile images from within docker-compose.yml.
  3. Deploy the entire stack with the docker compose command.

And that is the fundamental difference between Dockerfile and docker-compse.yml files.

All about CI/CD Pipleline..!!!!

A CI/CD Pipeline implementation, or Continuous Integration/Continuous Deployment, is the backbone of the modern DevOps environment. It bridges the gap between development and operations teams by automating the building, testing, and deployment of applications. In this blog, we will learn what a CI/CD pipeline is and how it works.

Before moving onto the CI/CD pipeline, let’s start by understanding DevOps.

DevOps is a software development approach that involves continuous development, continuous testing, continuous integration, continuous deployment, and continuous monitoring of the software throughout its development lifecycle. This is the process adopted by all the top companies to develop high-quality software and shorter development lifecycles, resulting in greater customer satisfaction, something that every company wants.

Your understanding of DevOps is incomplete without learning about its lifecycle. Let us now look at the DevOps lifecycle and explore how it is related to the software development stages.

CI stands for Continuous Integration and CD stands for Continuous Delivery/Continuous Deployment. You can think of it as a process similar to a software development lifecycle.
Let us see how it works.

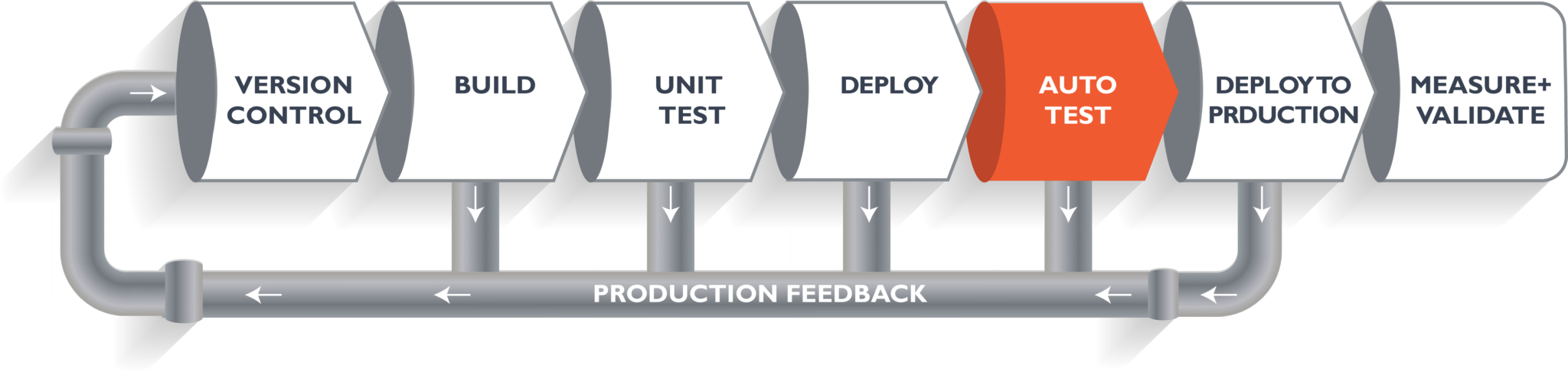

The above pipeline is a logical demonstration of how software will move along the various stages in this lifecycle before it is delivered to the customer or before it is live in production.

Let’s take a scenario of a CI/CD Pipeline. Imagine you’re going to build a web application which is going to be deployed on live web servers. You will have a set of developers responsible for writing the code, who will further go on and build the web application. Now, when this code is committed into a version control system (such as git, svn) by the team of developers. Next, it goes through the build phase, which is the first phase of the pipeline, where developers put in their code and then again the code goes to the version control system with a proper version tag.

Suppose we have Java code and it needs to be compiled before execution. Through the version control phase, it again goes to the build phase, where it is compiled. You get all the features of that code from various branches of the repository, which merge them and finally use a compiler to compile it. This whole process is called the build phase.

Once the build phase is over, then you move on to the testing phase. In this phase, we have various kinds of testing. One of them is the unit test (where you test the chunk/unit of software or for its sanity test).

When the test is completed, you move on to the deploy phase, where you deploy it into a staging or a test server. Here, you can view the code or you can view the app in a simulator.

Once the code is deployed successfully, you can run another sanity test. If everything is accepted, then it can be deployed to production.

Meanwhile, in every step, if there is an error, you can shoot an email back to the development team so that they can fix it. Then they will push it into the version control system and it goes back into the pipeline.

Once again, if there is any error reported during testing, the feedback goes to the dev team again, where they fix it and the process reiterates if required.

This lifecycle continues until we get code/a product which can be deployed to the production server where we measure and validate the code.

We now understand the CI/CD Pipeline and its working; now, we will move on to understand what Jenkins is and how we can deploy the demonstrated code using Jenkins and automate the entire process.

The Ultimate CI Tool and Its Importance in the CI/CD Pipeline

Our task is to automate the entire process, from the time the development team gives us the code and commits it to the time we get it into production. We will automate the pipeline in order to make the entire software development lifecycle in DevOps/automated mode. For this, we will need automation tools.

Jenkins provides us with various interfaces and tools in order to automate the entire process.

We have a Git repository where the development team will commit the code. Then, Jenkins takes over from there, a front-end tool where you can define your entire job or the task. Our job is to ensure the continuous integration and delivery process for that particular tool or for the particular application.

From Git, Jenkins pulls the code and then Jenkins moves it into the commit phase, where the code is committed from every branch. The build phase is where we compile the code. If it is Java code, we use tools like maven in Jenkins and then compile that code, which can be deployed to run a series of tests. These test cases are overseen by Jenkins again.

Then, it moves on to the staging server to deploy it using Docker. After a series of unit tests or sanity tests, it moves on to production.

Docker is just like a virtual environment in which we can create a server. It takes a few seconds to create an entire server and deploy the artifacts we want to test. But here the question arises:

Why do we use Docker?

As we said earlier, you can run the entire cluster in a few seconds. We have a storage registry for images where you build your image and store it forever. You can use it anytime in any environment which can replicate itself.

Hands-On: Building a CI/CD Pipeline Using Docker and Jenkins

Step 1: Open your terminal in your VM. Start Jenkins and Docker using these commands:

 systemctl start jenkins

 systemctl enable jenkins

 systemctl start docker

Note:Use sudo before the commands if it displays a “privileges error.”

Step 2: Open Jenkins on your specified port. Click on New Item to create a Job.

Step 3: Select a freestyle project and provide the item name (here I have given Job1) and click OK.

Step 4: Select Source Code Management and provide the Git repository. Click on Apply and Save button.

Step 5: Then click on Build->Select Execute Shell

Step 6: Provide the shell commands. Here, it will build the archive file to get a war file. After that, it will get the code which is already pulled and then it uses maven to install the package. It simply installs the dependencies and compiles the application.

Step 7: Create the new Job by clicking on New Item.

Step 8: Select freestyle project and provide the item name (here I have given Job2) and click on OK.

Step 9: Select Source Code Management and provide the Git repository. Click on Apply and Save button.

Step 10: Then click on Build->Select Execute Shell

Step 11: Provide the shell commands. Here it will start the integration phase and build the Docker Container.

Step 12: Create the new Job by clicking on New Item.

Step 13: Select freestyle project and provide the item name (here I have given Job3) and click on OK.

Step 14: Select Source Code Management and provide the Git repository. Click on Apply and Save button.

Step 15: Then click on Build->Select Execute Shell

Step 16: Provide the shell commands. Here it will check for the Docker Container file and then deploy it on port number 8180. Click on Save button.

Step 17: Now click on Job1 -> Configure.

Step 18: Click on Post-build Actions -> Build other projects.

Step 19: Provide the project name to build after Job1 (here is Job2) and then click on Save.

Step 20: Now click on Job2 -> Configure.

Step 21: Click on Post-build Actions -> Build other projects.

Step 22: Provide the project name to build after Job2 (here is Job3) and then click on Save.

Step 23: Now we will be creating a Pipeline view. Click on the “+” sign.

Step 24: Select Build Pipeline View and provide the view name (here I have provided CI CD Pipeline).

Step 25: Select the initialJob (here I have provided Job1) and click on OK.

Step 26: Click on Run button to start the CI/CD process.

Step 27: After successful build open localhost:8180/sample.text. It will run the application.

So far, we have learned how to create a CI/CD Pipeline using Docker and Jenkins. The intention of DevOps is to create better-quality software more quickly and with more reliability while inviting greater communication and collaboration between teams.

Source of Article: https://dzone.com/articles/learn-how-to-setup-a-cicd-pipeline-from-scratch
